Payment & Shipping Terms:
|Material:||SUS304||Logo:||Embossing , Printing|
|Keg Neck:||2*14TPI||Surface:||Pickling And Passivation|
|Use For:||Beer And Beverage||Spear:||A,S,D,G,M|
logo print available
high quality and competitive price

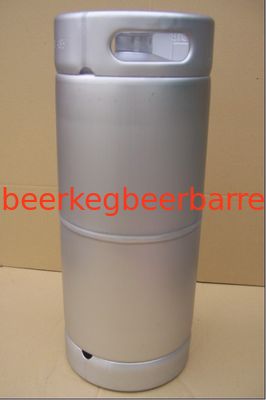

2. Keg Structure:
2.1 Beads: Provides first-rate protection for the areas most exposed to the effects of falls and impacts. The pronounced shape ensures exceptional strength and also offers the benefits of a convenient design for handling purposes.
2.2 Hand holes: Secure handling of kegs is easy. The cleanly formed hand holes are absolutely free from burrs and provide a good grip.
2.3 Keg neck: To meet the requirements and high outputs of modern filling technology, we use forged material with high forming strength and single-fillet welding.
2.4 Rolling rings: These make a major contribution to the strength of the keg. The easy-clean contour is obtained by means of the special production process.
2.5 Circular weld: State-of-the-art welding technology ensures that welds are free from cracks and pitting. The clean, smooth inner surface is easy to clean and resists infection sources that might contaminate the contents.
2.6 Bottom chime: The chimes have to be especially robust. Exceptionally high buckling strength is achieved with stainless steel produced to the specification.
2.7 Embossing and labeling: A broad array of brand logos, symbols, production and filling data can be carried on the kegs.
2.8 Our kegs can be stackable.
3. Production Process
3.1 Deep drawing: Special drawing presses are used to produce highly accurate, precision-dimensioned, smooth-surfaced deep-drawn parts from circular blanks.
3.2 Forming: Technical crimping of beads in the cold-formed keg halves. Cutting the keg halves. Making the bunghole in to half of the keg.
3.3 Welding in the necks: The necks are automatically welded in the top keg halves using a special method.
3.4 Embossing and labeling: Customer-specific data are embossed or stamped on the kegs in a special press. Such data include the customer’s name, logo, type approvals and serial numbers
3.5 From bending, welding, rolling: The chime strips are rolled into rounds, tensed and welded fully automatically to produce the chime rings. These are rolled in a hydraulic forming press equipped with special tools.
3.6 Stamping and forming: The hand and drain holes are stamped and punched fully automatically by precision machines. All parts are mechanically deburred safe handling.
3.7 Welding the chimes on the keg halves: The chimes are welded on the top and bottom keg halves by special welding methods.
3.8 Circumferential welding of the two keg halves: The keg halves are welded together to obtain the complete keg on fully automatic circumferential welding machines. Hygienic, smooth, narrow, flat weld seams and perfect weld root, especially on the side in contact with the product.
3.9 Pickling, pre-rinsing, passivation, rinsing: The kegs are pickled, rinsed and passivated inside and out, to ensure a grease-free, hygienically sealed surface.
SUS304/2B, the thickness is using 1.2mm, 1.5mm, 18mm, 2.0mm according to the capacity and customer’s requirements.
5. The pressure test
The keg is pressed with 0.5MPa and kept 3 minutes.
We are beer keg and keg accessories supplier for many years, we supply Europe keg ,DIN keg, and US beer barrel,etc, also for keg accessories such as beer tap, beer coupler, beer dispenser,etc. feel free to contact us by mail firstname.lastname@example.org
Contact Person: Mr. Locan Luo
